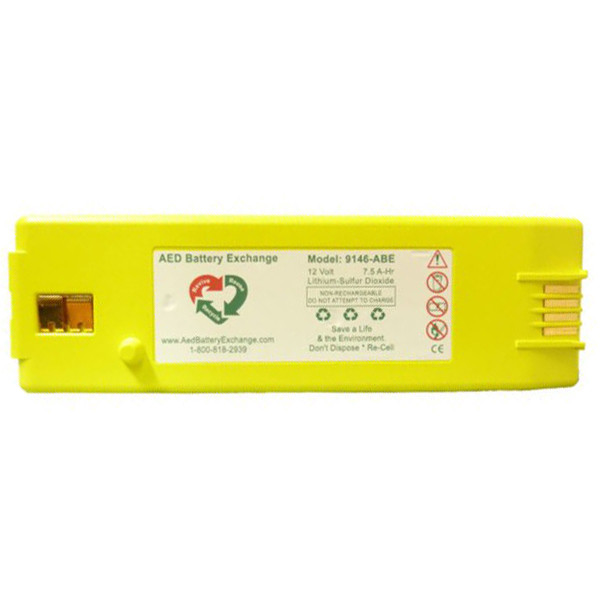

AED Battery Exchange 9146-ABE Replacement Battery (Yellow)
Ensure your automated external defibrillator is always "Rescue Ready" with the premium 9146-ABE replacement battery manufactured by AED Battery Exchange. Specifically engineered as a high-performance, cost-effective alternative to original equipment manufacturer (OEM) units, this medical-grade Lithium Sulfur Dioxide ($Li-SO_2$) battery delivers uncompromised reliability when seconds count.
Whether you are managing a single facility AED or a large public access defibrillator program, purchasing your 9146-ABE from BestInBatteries.com guarantees you receive fresh date codes, maximum shelf life, and expert customer support.
Complete Compatibility & Fit
The 9146-ABE is a direct, drop-in replacement for the discontinued or high-priced OEM batteries used in Cardiac Science and Burdick defibrillator units.
Replaces the Following OEM Part Numbers:
-
Cardiac Science: 9146-002, 9146-102, 9146-202, 9146-302
Fully Compatible AED Models:
-
Cardiac Science Powerheart G3 (Models 9300A, 9300E)
-
Cardiac Science Powerheart G3 Plus (Models 9390A, 9390E)
-
Burdick Cardiovive AT
Key Features & Product Benefits
-
FDA-Cleared Re-Celled Technology: Built utilizing strict quality standards and FDA-cleared processes, giving you OEM-level performance and safety at a fraction of the cost.
-
Exceptional Standby & Operational Life: Features an estimated 5-year uninstalled shelf life, followed by a 4-year operational standby life once clicked into your AED device.
-

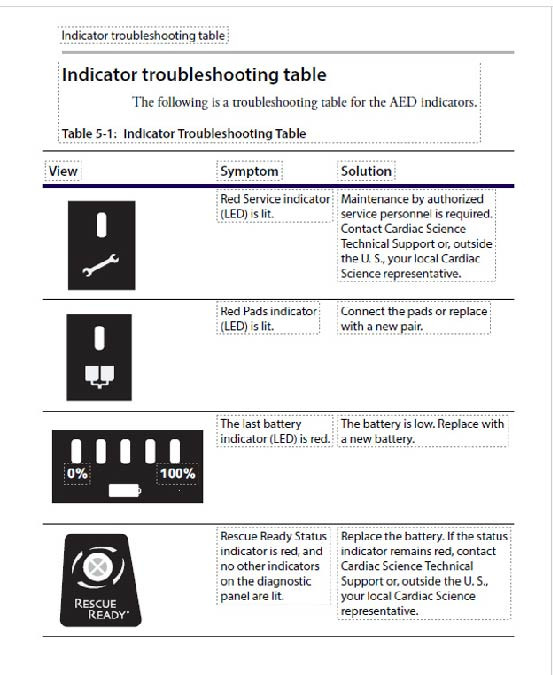

Intelligent Smartgauge™ Integration: Fully supports your Powerheart G3’s internal diagnostic system. Once installed, it communicates seamlessly with the device to run automatic daily self-tests and accurately reflect capacity levels via the AED's green/red LED status indicators.
-
High Capacity Output: Rated at 12VDC, 7.5 Ah (90 Wh), this non-rechargeable pack provides typically up to 290 shocks or 16 hours of continuous operating time.
Technical Specifications
| Attribute | Specification |
| Manufacturer | AED Battery Exchange |
| Part Number | 9146-ABE (Yellow Case) |
| Chemistry | Lithium Sulfur Dioxide ($Li-SO_2$) |
| Nominal Voltage | 12 VDC |
| Capacity | 7.5 Ah / 90 Wh |
| Total Lithium Content | Less than 9.2g |
| Weight | 1.21 lbs |
| Dimensions | 9.38 x 2.75 x 2.0 inches |
| Warranty | 4-Year Full Operational Warranty |
Why Trust AED Battery Exchange?
Sudden Cardiac Arrest (SCA) demands immediate, reliable power. Studies show that a primary cause of unsuccessful AED deployment is a neglected or failing battery. AED Battery Exchange products are constructed with premium, freshly manufactured cells to eliminate the risk of premature failure, backed by an industry-leading 4-year warranty against defects.
Installation Instructions
Replacing your Powerheart G3 battery takes less than a minute and requires zero tools:
