Product Description

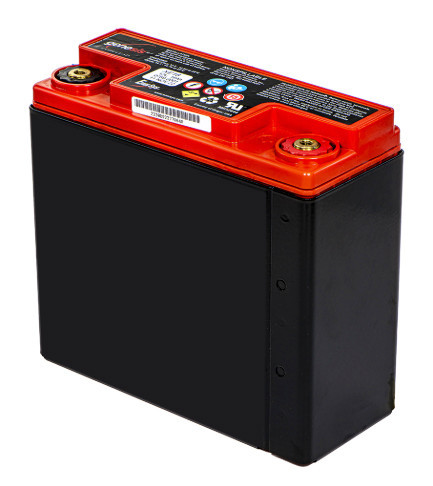

EnerSys Genesis XE16X (0769-6003) 12V 16Ah Sealed Lead Acid Battery
Uncompromising Power. Built for the Most Demanding Environments.
The EnerSys Genesis XE16X (P/N: 0769-6003) is a premium 12V 16Ah high-performance battery engineered to deliver massive cranking power and reliable deep-cycle performance in compact spaces. Powered by Thin Plate Pure Lead (TPPL) AGM technology and encased in a rugged protective metal jacket, the XE16X is built to withstand extreme heat, heavy vibration, and harsh operating conditions where standard batteries fail.
Whether you need rapid high-rate power delivery or superior deep-discharge recovery, the Genesis XE16X provides long cycle life, zero routine maintenance, and trusted reliability for industrial, renewable energy, and mission-critical applications.
Key Features & Benefits
-
Thin Plate Pure Lead (TPPL) AGM Design: Delivers higher power density and faster recharge capability compared to conventional lead-acid batteries.
-
Metal Jacket Protection: Enclosed in a rugged metal sleeve that guards against thermal expansion, physical shock, and extreme vibration.
-
Extreme Temperature Performance: Operates reliably across an extended temperature range from $-40^\circ\text{C}$ to $+80^\circ\text{C}$.
-
Spill-Proof & Maintenance-Free: Sealed valve-regulated construction allows installation in almost any orientation (except inverted) without acid leaks.
-
Flame Retardant Housing: Flame-retardant case and cover meeting UL 94 V-0 safety standards.
-
Air Transport Certified: Approved for non-hazardous, non-spillable shipping (per IATA Special Provision A67 and 49 CFR).
Technical Specifications
| Parameter | Specification |
| Manufacturer | EnerSys |
| Series | Genesis XE |
| Part Number (SKU) | 0769-6003 / XE16X |
| Nominal Voltage | 12 Volts |
| Capacity | 16 Ah @ 10-Hr Rate |
| Technology | Sealed Lead Acid (AGM / TPPL) |
| Terminal Type | M6 Recessed / Nut & Bolt |
| Dimensions (L x W x H) | $7.12\text{ inside"} \times 2.99\text{"} \times 6.57\text{"}$ ($180.8 \times 75.9 \times 166.9\text{ mm}$) |
| Weight | $14.1\text{ lbs}$ ($6.4\text{ kg}$) |
| Flame Rating | UL 94 V-0 |
Common Applications
-
Solar & Wind Energy Storage Systems
-
Automated Guided Vehicles (AGV) & Material Handling
-
Industrial Utility & Hybrid Vehicles
-
Defense, Aerospace & Telecommunications
-
Emergency Backup & Medical Equipment
