Product Description
Unmatched Pure Lead Power for Extreme & Critical Applications

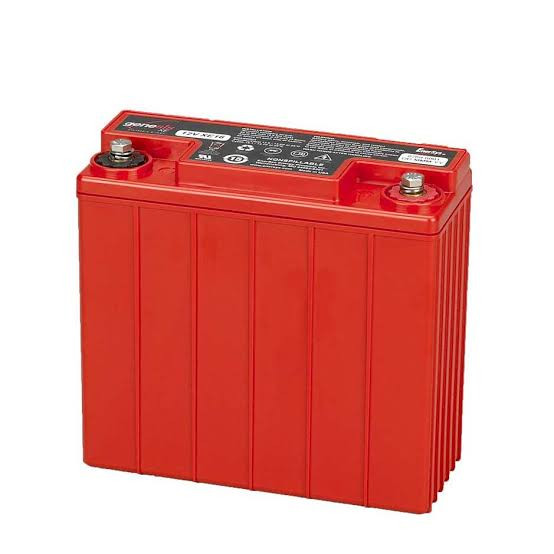

When reliable power in harsh conditions is non-negotiable, the EnerSys Genesis XE16 (0769-6001) delivers. Engineeered with advanced Thin Plate Pure Lead (TPPL) AGM technology, this 12-Volt, 16 Amp-Hour battery delivers superior high-rate discharge capacity, rapid recharge efficiency, and exceptionally long service life in a compact footprint.
Made in the USA, the Genesis XE series is built to outperform standard AGM and gel batteries—offering up to 70% longer cycle life and holding a charge in open-circuit storage for up to 2 years without recharging. Whether deployed in extreme temperature environments, high-vibration machinery, or sensitive medical backup systems, the XE16 delivers uninterrupted performance you can trust.
Key Features & Benefits
-
Thin Plate Pure Lead (TPPL) Technology: Provides higher energy density and massive cranking/discharge power compared to conventional deep-cycle batteries.
-
Extreme Temperature Resilience: Operates reliably across broad temperature ranges from -40°C up to +80°C.
-
Fast Recharge Capability: Reaches 100% state-of-charge in as little as 4 to 6 hours.
-
Spillproof & Non-Hazardous: Sealed maintenance-free design allows mounting in almost any orientation (except inverted) and is DOT/IATA certified as non-spillable for safe air and ground shipping.
-
Flame Retardant Housing: Features a high-impact, flame-retardant case rated UL 94V-0 for industrial safety.
-
Low Self-Discharge: Exceptional shelf life—stores on open circuit for up to 24 months before needing a freshening charge.
Technical Specifications
| Specification | Value |
| Brand / Series | EnerSys® Genesis® XE |
| Model / Part Number | XE16 / 0769-6001 |
| Nominal Voltage | 12 Volts |
| Nominal Capacity | 16 Ah (10-Hr / 20-Hr rate) |
| Chemistry | Thin Plate Pure Lead (TPPL) / AGM Sealed Lead Acid |
| Terminal Type | Recessed M6 / Nut & Bolt |
| Dimensions (L x W x H) | 7.12" x 2.99" x 6.57" (180.8mm x 75.9mm x 166.9mm) |
| Weight | 14.1 lbs (6.4 kg) |
| Flammability Rating | UL 94 V-0 |
| Country of Origin | USA |
Primary Applications
-
Alternative Energy Systems: Solar array storage, off-grid power, and wind turbine pitch control.
-
Electric & Hybrid Vehicles (HEV / AGV): Automated guided vehicles, golf/utility carts, and mobility tech.
-
Medical Equipment: Mobile diagnostic carts, emergency life-support equipment, and field backup power.
-
Telecom & UPS Systems: Critical infrastructure, server backups, and industrial monitoring gear.
