Product Description

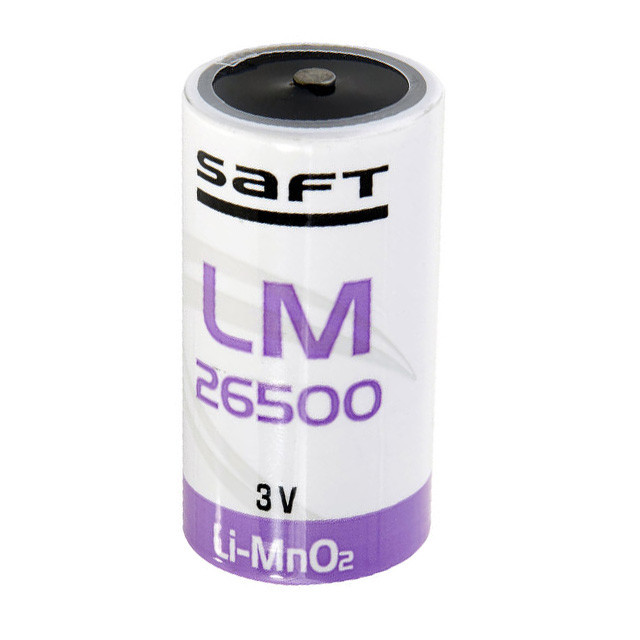

Looking for a reliable LM26500 3.0V C-size lithium battery? Buy high-drain Saft LM26500 primary Li-MnO2 cells with 7400mAh (7.4Ah) capacity at BestInBatteries.com. Fast shipping, fresh stock, and bulk wholesale pricing available!
Technical Specifications
| Parameter | Specification |
| Part Number | LM26500 (Saft LM 26500) |
| Chemistry | Primary Lithium Manganese Dioxide ($\text{Li-MnO}_2$) |
| Cell Size | C-Cell (Spiral Construction) |
| Nominal Voltage | 3.0 V |
| Nominal Capacity | 7.4 Ah / 7400 mAh |
| Maximum Continuous Current | 2.0 A |
| Pulse Current Capability | Up to 4.0 A |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Dimensions | 26.0 mm (Diameter) x 51.5 mm (Height) |
| Weight | ~61 g |
| Self-Discharge Rate | Less than 1% per year at +20°C |
Overview
The LM26500 C-size lithium manganese dioxide ($\text{Li-MnO}_2$) battery is engineered to deliver reliable, long-lasting power for demanding industrial, medical, and remote applications. Designed with a high-energy spiral cell construction, the LM26500 handles both continuous moderate-drain power and high pulse current demands (up to 4.0A) without experiencing significant voltage drops.
Whether deployed in harsh outdoor conditions or left in long-term dormant storage, the LM26500 maintains exceptional performance due to its wide operating temperature range (-40°C to +85°C) and ultra-low self-discharge rate.
Key Features & Benefits
-
High Pulse & High Drain Power: Excellent high-current response designed specifically for devices requiring short radio frequency (RF) transmissions, telemetry bursts, or high-peak current draws.
-
Long Shelf Life: Features an extremely low self-discharge rate of less than 1% per year, giving it a multi-year operational and storage life.
-
Extreme Temperature Endurance: Operates reliably in frozen environments or high-heat conditions without capacity degradation.
-
Safe & Hermetically Sealed: Built with a stainless-steel container, glass-to-metal seal, non-corrosive electrolyte, and integrated safety venting to prevent leaks.
-
No Voltage Lag: Unlike some lithium-thionyl chloride chemistries, $\text{Li-MnO}_2$ provides an immediate, stable voltage output even after long periods of inactivity.
Common Applications
The LM26500 is the trusted power source for mission-critical and remote electronic devices, including:
-
Smart Utility Metering: Automated Meter Reading (AMR) for gas, water, and electricity meters.
-
IoT & Telemetry: Remote monitoring devices, GSM/GPRS tracking systems, and asset trackers.
-
Security Systems: Wireless alarm sensors, perimeter monitors, and emergency transmitters.
-
Industrial & Military: Field radios, beacons, marine equipment, and specialized sensors.
-
Medical Equipment: Portable diagnostics, patient monitoring tools, and memory backup systems.
Frequently Asked Questions
Is the LM26500 battery rechargeable?
No. The LM26500 is a primary (non-rechargeable) lithium manganese dioxide ($\text{Li-MnO}_2$) cell. Attempting to recharge this battery can cause severe damage or leakage.
What is the difference between an LM26500 and an LS26500?
While both are C-size lithium cells, the LM26500 uses Lithium Manganese Dioxide ($\text{Li-MnO}_2$, 3.0V), which is optimized for high pulse currents and high-drain power. The LS26500 uses Lithium Thionyl Chloride ($\text{Li-SOCl}_2$, 3.6V), which is designed for low-current, long-term standby applications. Always verify your equipment’s required voltage before replacing.
Does BestInBatteries offer custom tab configurations?
Yes! If your device requires solder tabs, radial pins, or flying leads (wire leads), please contact our team for custom termination options.
Why Buy From BestInBatteries.com?
-
100% Guaranteed Fresh Stock: We source directly to ensure full capacity and maximum shelf life.
-
Volume & OEM Discounts: Save more when you buy in bulk for production or fleet replacement.
-
Fast & Safe Shipping: Compliant with all Hazmat Class 9 shipping regulations for primary lithium batteries.
