Product Description

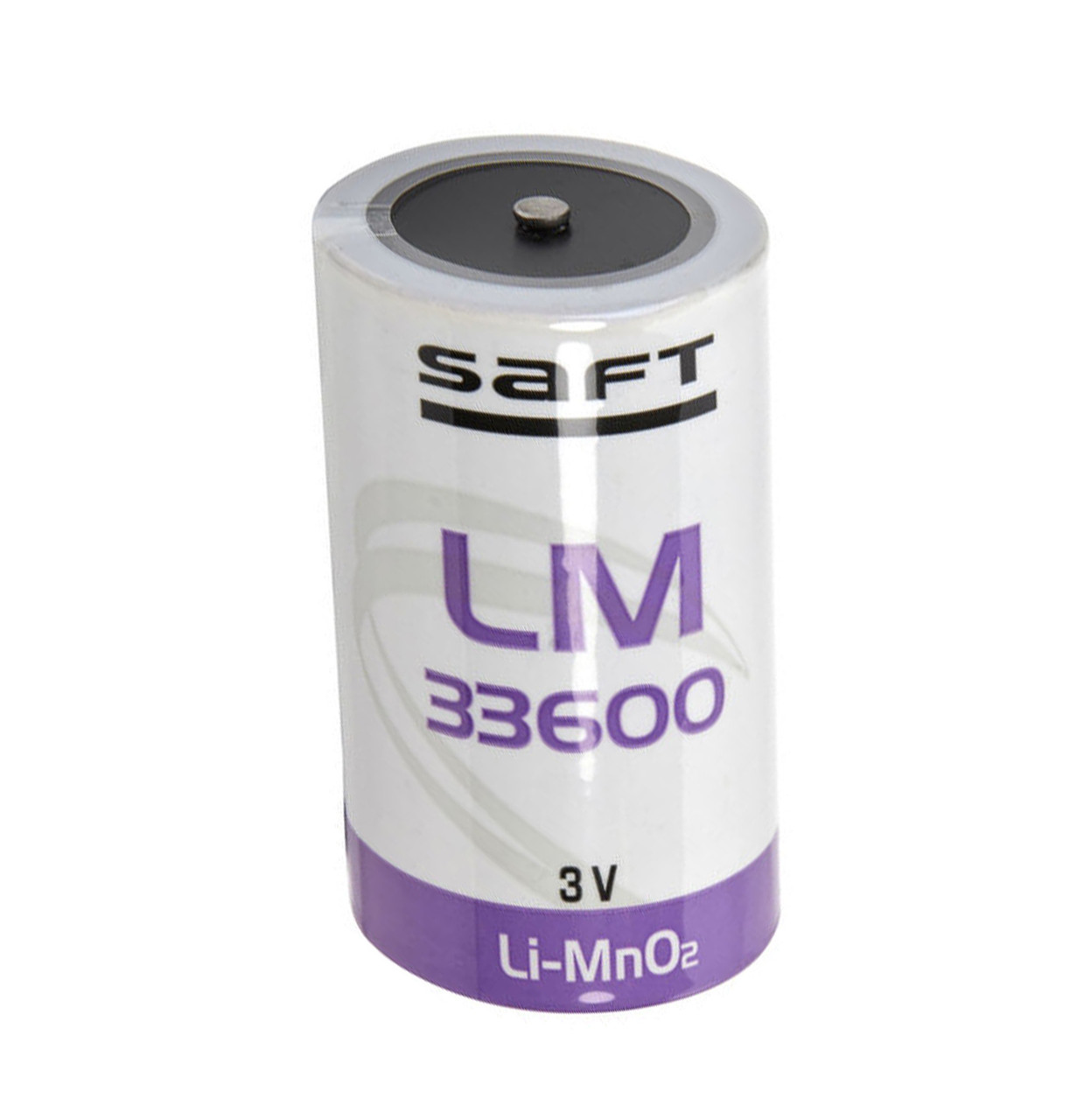

Power your high-drain industrial electronics, utility meters, and IoT applications with the Saft LM33600 3V D-Cell Lithium Battery. Engineered with spiral wound technology and Lithium Manganese Dioxide chemistry, this non-rechargeable cell delivers maximum energy density, stable output, and rapid pulse capability—even under extreme cold or heat.
-
Brand: Saft
-
Part Number / SKU: LM33600 (39336000108)
-
Chemistry: Primary Lithium Manganese Dioxide
-
Size: D Cell
-
Voltage: 3.0V
-
Nominal Capacity: 13.4 Ah (13,400 mAh)
Full Product Description & Key Features
When failure isn't an option, the Saft LM33600 provides industrial-grade reliability. Designed specifically for devices requiring sustained continuous power alongside brief high-current pulses, its high-energy spiral design minimizes voltage delay and voltage drops under load.
Why Choose the Saft LM33600?
-
High Pulse & Continuous Drain: Capable of delivering continuous current up to 4.0A and pulse discharge bursts up to 8.0A.
-
Long Operating & Shelf Life: Features an exceptionally low self-discharge rate (less than 1% per year at 20°C storage), guaranteeing up to a 10-year operational shelf life.
-
Extreme Temperature Range: Performs flawlessly from -40°C to +85°C (-40°F to +185°F), making it ideal for harsh outdoor or remote environments.
-
Industrial Safety Standards: Built with a stainless steel canister, glass-to-metal hermetic seal, non-corrosive electrolyte, and integrated safety vent.
Popular Applications:
-
Smart Utility Metering (Gas, Water, Electric AMR/AMI)
-
IoT & M2M Wireless Sensor Nodes
-
Security Systems, Alarms, and Emergency Transmitters
-
Medical Devices & Field Diagnostic Tools
-
Military, Tactical, and Radio Communications
Technical Specifications
| Specification | Details |
| Manufacturer | Saft |
| Model Number | LM33600 / LM 33600 |
| Voltage | 3.0 Volts |
| Capacity | 13.4 Ah (13,400 mAh) |
| Nominal Energy | 37 Wh |
| Max Continuous Current | 4.0A |
| Max Pulse Current | 8.0A |
| Cell Construction | Spiral-wound D-Cell |
| Dimensions | 33.7 mm (1.32") Diameter × 61.3 mm (2.41") Height |
| Weight | ~113 grams |
| Operating Temp | -40°C to +85°C |
| Rechargeable | No (Primary / Non-Rechargeable) |
Important Safety & Handling Notes
⚠️ Warning: The Saft LM33600 is a non-rechargeable primary lithium cell. Do not attempt to recharge, short circuit, crush, heat above 85°C, or incinerate. Do not solder connections directly to the battery casing—use pre-tabbed/wire-lead versions if custom assembly is required.
